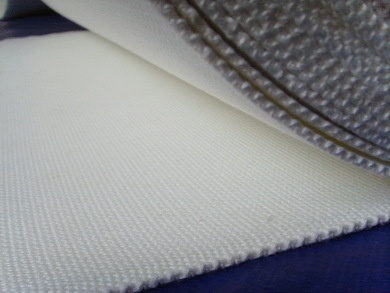

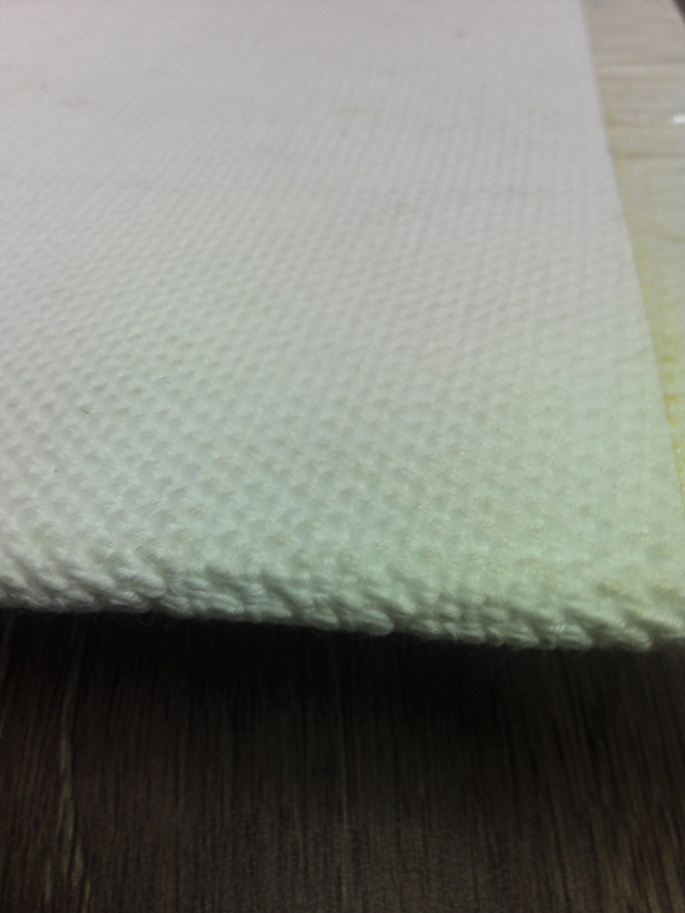

*Product Name : Air Slide Canvas

*Description

 1. Product Specification

    Item Code         : Air Slide Canvas-6T

    Material            : 100% Polyester Spun Yarn

    Thickness          : 6mm - 6.3mm

    Weight             : 4300g/m2 - 4500g/m2

    Tensile Strength : Warp - 6000 N/cm

                             Weft - 4300 N/cm

    Heat Resistance : -60 to 150 Dec C

    Air-permeability : 400 m3/m2/h@800mmWG

                            [250 cc/cm2/min@500mmAQ]

    Weave Density  : Warp - 20S/12

                            Weft - 20S/25

    PLY                 : 4

 2. Application

   : Air Slide Canvas fabric is used for the conveyance of material in the Material Handling System &

     Pneumatic Conveying System.

     This apply to :

     Cement Industry

     Mining Industry

     Chemical Plant

     Powder Plant

     Food Industry
